Efficient SELinux Relabeling in Kubernetes

SELinux relabeling is the process used by Kubernetes Nodes running SELinux to establish the security boundary for different pods accessing data stored in Persistent Volumes.

In this article I will cover details about the workings of SELinux, issue associated with the current relabeling process, kernel based context aware volume mount, activating a beta KEP for resolving the timeout issue while ensuring we don’t lose any data.

Security Enhanced Linux

Security-Enhanced Linux (SELinux) is a security architecture that allows administrators more control over data access policies.

SELinux can be enabled or disabled. When enabled, SELinux has two modes:

• permissive: SELinux policy is not enforced but logging happens for denied operations.
• enforcing: SELinux policy is enforced and operations would be denied.

The mode can be changed by setting SELINUX=permissive|disabled|enforcing in /etc/selinux/config and then restarting the system.

The SELinux mode of a running system can be checked by running

> getenforce
0 # permissive

> getenforce
1 # enforcing

Cloud Providers

Each Cloud Provider has its own variant of a recommended operating system for hosting container workloads which might use SELinux

For checking on an EKS node we can start a debug pod as ssh is disabled on EKS:

kubectl get pod git-crawler-0 -o wide
kubectl debug node/ip-10-1-11-111.us-east-1.compute.internal -it --image=ubuntu:22.04 --profile=sysadmin
root@ip-10-1-45-192:/# cat /host/etc/selinux/config
SELINUX=enforcing
SELINUXTYPE=fortified

GKE’s COS doesn’t support SELinux, there is no explicit mention anywhere even though it uses Chromium OS which supports SELinux. The only verification is the absence of a SELinux config file on a node running COS:

❯ kubectl debug node/gke-glean-cluster-git-crawler-e2-high-01f1101f-ff1f -it --image=ubuntu:22.04 --profile=sysadmin
root@gke-glean-cluster-git-crawler-e2-high-01f1101f-ff1f:/# ls /host/etc/selinux
ls: cannot access '/host/etc/selinux': No such file or directory

Process & File Labels

SELinux works by associating labels with subjects (processes) and objects (such as files).

These labels are called SELinux Contexts, which contain information about SELinux user, role, type and optionally a level.

We won’t go too deep into them, just understanding that only processes with SELinux Context same as a file can access it is sufficient for now.

For example, only a process with the label ...:container_t:s0:c309,c383 can access files with label container_file_t:s0:c309,c383

We can check the label for a file or process as shown below

> ls -Z file
-rw-rw-r--  user1 group1 unconfined_u:object_r:user_home_t:s0 file

> ps -eZ | grep passwd
system_u:system_r:dhcpc_t:s0             1869 ?  00:00:00 dhclient
system_u:system_r:sshd_t:s0-s0:c0.c1023  1882 ?  00:00:00 sshd
system_u:system_r:gpm_t:s0               1964 ?  00:00:00 gpm
system_u:system_r:crond_t:s0-s0:c0.c1023 1973 ?  00:00:00 crond
system_u:system_r:kerneloops_t:s0        1983 ?  00:00:05 kerneloops
system_u:system_r:crond_t:s0-s0:c0.c1023 1991 ?  00:00:00 atd

The container runtime on SELinux assigns a unique random label to each container (process) if not explicitly set in the container.

Label assignment ensures that a process that maliciously escapes the container boundary cannot access data of any other container on the host node.

Recursive Relabeling

The container runtime does a recursive walk of all the files that are visible to the Pod’s container including volume mounts and changes the SELinux label to match the one assigned to the Pod.

This can be time-consuming if there are many files on the volume, especially when the volume is on a remote filesystem (EBS, Persistent Disk, Azure Disk, etc.)

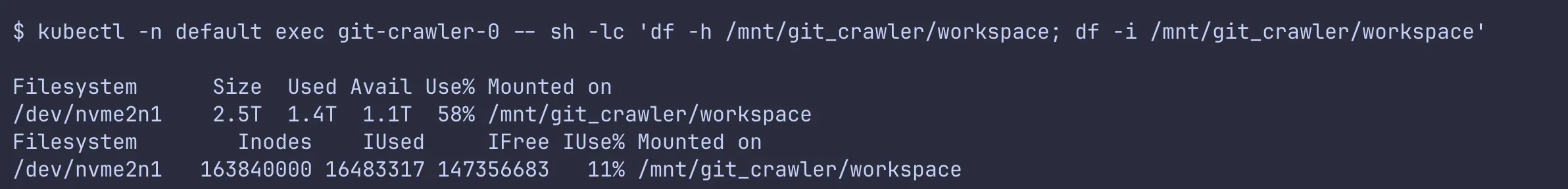

The issue we faced with our Git Crawler service was the prior one. The data stored on disks was of the order of 5TB+ leading to an extremely high count of inodes due to the presence of too many small files.

The issue used to happen in the order below:

• Recursive walk used to time out
• The container runtime tries to create a new pod
• The name of pod git-crawler-0 is still held by the previous pod
• The container runtime keeps failing to bring up a pod

"containerStatuses": [
      {
        "name": "git-crawler",
        "state": {
          "waiting": {
            "reason": "CreateContainerError",
            "message": "failed to reserve container name \"git-crawler_git-crawler-0_default_e3901bc1-120f-4cd8-a97a-fe5eb3e766ca_257\": name \"git-crawler_git-crawler-0_default_e3901bc1-120f-4cd8-a97a-fe5eb3e766ca_257\" is reserved for \"b6eaed8ab5675f2c339e306ad044012323830687b17553fa24baa8e2d13e8727\""
          }
        },
        "lastState": {},
        "ready": false,
        "restartCount": 256
  }
]

Disk Corruption

In my blog the uptime we owed our git crawler we utilised readiness and health check probes to manage memory because we were under the assumption that OOMs were leading to disk corruption.

This initial triage was based on the error we saw input/output error after running the operations below

1. Cordon the associated node for pod
2. Force delete the pod
3. Delete the stale volume attachment binding volume to old node
4. Create the pod again

Error: failed to generate container "50083e651c70ee8ca16f7ff411ef8ff762a36f41ca15b704a63777ef47055196" spec: failed to apply OCI options: relabel "/var/lib/kubelet/pods/32689181-f2a0-499a-affb-6ba14a16db84/volumes/kubernetes.io~csi/pvc-465151e4-06bc-4636-b7a5-a0aa87ca05eb/mount" with "system_u:object_r:data_t:s0:c346,c780" failed: readdirent /var/lib/kubelet/pods/32689181-f2a0-499a-affb-6ba14a16db84/volumes/kubernetes.io~csi/pvc-465151e4-06bc-4636-b7a5-a0aa87ca05eb/mount/1BCD4C00FB3CA92E58B2C2516FB688A5/github/chromium-src/third_party/blink/web_tests/external/wpt/css/geometry: input/output error

Only later I tried to verify the authenticity of this claim by attaching the assumed corrupted volume to an EC2 instance and running fsck (file system check) and chcon (assign SELinux label to file):

$ sudo fsck.ext4 -fn /dev/nvme2n1
e2fsck 1.46.5 (30-Dec-2021)
Warning!  /dev/nvme2n1 is mounted.
Pass 1: Checking inodes, blocks, and sizes
Pass 2: Checking directory structure
Pass 3: Checking directory connectivity
Pass 4: Checking reference counts
Pass 5: Checking group summary information
/dev/nvme2n1: 16483317/163840000 files (0.1% non-contiguous), 380737401/655360000 blocks

$ sudo chcon -R system_u:object_r:data_t:s0:c520,c1002 \
  "/mnt/triage-ebs/D4C00FB3CA92E58B2C2516FB688A5/github/chromium-src/third_party/blink/web_tests/external/wpt/css/geometry"
$ echo $?
0

Given both of the above worked, it proved that the disk wasn’t corrupted and instead it was a purely SELinux timing issue.

Context Aware Mount

Linux kernel mount command supports mounting volumes with a specific SELinux label (context) which assigns the entire volume one security context/SELinux label preventing the need for recursive relabeling.

mount -o context=system_u:system_r:container_t:s0:c309,c383 <what> <where>

Cluster Feature Flag

The feature was gated behind three flags:

• SELinuxMountReadWriteOncePod
• SELinuxChangePolicy
• SELinuxMount

The feature was getting rolled out first to only persistent volumes with access mode “Read Write Once Pod” which basically allows only a single writer for the mounted volume.

The feature controlling it, SELinuxMountReadWriteOncePod, was still a beta flag (GAed in v1.36), which meant cluster operators needed to opt in starting from v1.28.

We use EKS for running Kubernetes on AWS. To check whether features are enabled or not, we can run the command below

kubectl get --raw /metrics | grep kubernetes_feature_enabled

From it we found it was enabled by default on EKS for v1.33 so we were good to go further.

kubernetes_feature_enabled{name="SELinuxChangePolicy",stage="BETA"} 1
kubernetes_feature_enabled{name="SELinuxMount",stage="BETA"} 0
kubernetes_feature_enabled{name="SELinuxMountReadWriteOncePod",stage="BETA"} 1

CSI Feature Flag

The proposal also required CSI (Container Storage Interface) drivers to update their specification to declare whether they support context aware mount or not.

Given we maintain the EBS CSI driver as an addon using Terraform, I had to update the specification for the addon as below to enable SELinux mount which sets the CSI Specification flag correctly:

{
  addon_name               = "aws-ebs-csi-driver"
  configuration_values     = jsonencode({
  node = {
    selinux = var.glean_config["eks.ebs_csi.selinux_mount.enabled"] == "true"
    }
  })
}

I was advised to make this change in a flag-gated manner because an infrastructure change needs to go through enough soaking in pre production environments before it reaches customers.

Pod Security Context

The feature also requires that we set a SELinux context level for the pods. By default container runtime gives a random label which isn’t sufficient for this feature to work. So, we updated our git crawler StatefulSet specification for the same.

spec {
  security_context {
    se_linux_options {
      level = "s0:c8,c1001"
    }
}

PV Access Mode

This was the final task needed as part of migration. As mentioned above, the feature was only supported for ReadWriteOncePod access mode until our current Kubernetes cluster v1.33.

We didn’t want to lose data that was already crawled. So to change the access mode of volume without losing any data we had to follow below procedure:

First we proceed with backing up the current PVC specification so that we can re-create it by changing only the things we need to while retaining the rest of the properties.

kubectl get pvc git-crawler-data-git-crawler-0 -o json

Next we need to scale down the StatefulSet and also force delete the pod so the PVC is free for deletion.

kubectl scale sts git-crawler --replicas 0
kubectl delete pod git-crawler-0 --force --grace-period 0 --ignore-not-found=true

Given our Persistent Volume (PV) was created with a reclaim policy of delete, it would get deleted when in the next step we delete the Persistent Volume Claim (PVC). So to prevent that we need to change its reclaim policy to Retain.

export PV_NAME=$(cat pvc_backup.json | jq .spec.volumeName)
kubectl patch pv $PV_NAME --patch "{'spec':{'persistentVolumeReclaimPolicy': 'Retain'}}"

Now we can proceed with deleting the PVC. We have to do this because PVC is immutable and we can’t change its access mode.

PVC deletion is also an asynchronous process so we have to busy loop until we can’t get it.

kubectl delete pvc git-crawler-data-git-crawler-0

# in a loop poll on below command to error out
kubectl get pvc git-crawler-data-git-crawler-0

Now, we will update the access mode of our PV

kubectl patch pv $PV_NAME --patch "{'spec':{'accessModes': ['ReadWriteOncePod']}}"

We also need to unset its claimref so that the new PVC we will create from backup can be associated with it

kubectl patch pv $PV_NAME --patch "{'spec':{'claimRef': null}}"

Now, we will recreate our PVC back from the backup to match everything exactly

def _create_pvc_from_backup(self, kubectl: KubectlWrapper, pvc_backup: dict[str, Any])
  pvc_manifest = {
    'apiVersion': 'v1',
    'kind': 'PersistentVolumeClaim',
    'metadata': {
      'name': pvc_backup['metadata']['name'],
      'namespace': pvc_backup['metadata'].get('namespace', self.namespace),
    },
    'spec': dict(pvc_backup['spec']),
  }

  labels = pvc_backup.get('metadata', {}).get('labels')
  if labels:
    pvc_manifest['metadata']['labels'] = labels

  annotations = pvc_backup.get('metadata', {}).get('annotations')
  if annotations:
    pvc_manifest['metadata']['annotations'] = annotations

  pvc_manifest['spec']['accessModes'] = [_TARGET_ACCESS_MODE]

  with tempfile.NamedTemporaryFile(mode='w', suffix='.json', delete=False) as tmp:
    json.dump(pvc_manifest, tmp)
    tmp_path = tmp.name

  kubectl.exec_cmd(['create', '-f', tmp_path])

Finally, we can scale our StatefulSet back up, and by already having the correct PVC in place, it will get associated with the pod as it was before.

kubectl scale sts git-crawler --replicas 1

Eureka!

After all this we finally were able to support even customers who have 5TB+ data and more than 16M files/inodes on a single volume of git crawler service.

I really got to learn a lot of Kubernetes-related concepts and operations because of this particular caveat/problem I encountered. I even read through a whole KEP which was pretty insightful.

The end result though was all our customers are running Git Crawler in Kubernetes now which supports:

• Zero Downtime
• Vertical Pod Autoscaling
• PVC Automatic Resizing
• Observability

We entered an operational heaven with all this and had 0 issues related to our Git Crawler Service.

That’s all for now, thanks for reading. It really took me quite some time to write this particular one because of so many technical concepts which I had to read thoroughly before I could take a shot at explaining them to anyone.
